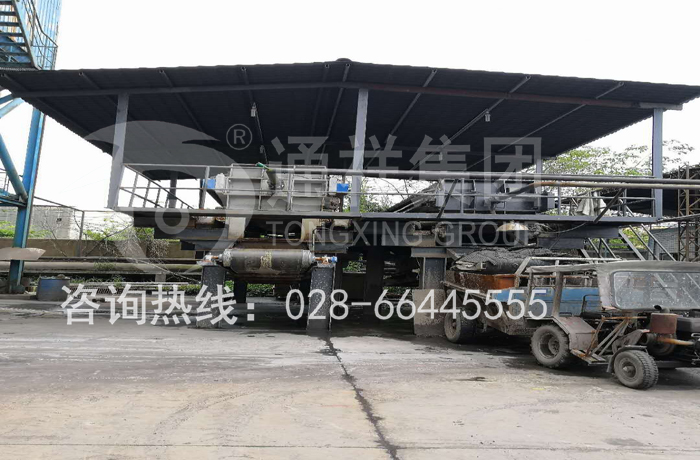

四川彭州纸厂污水

应用行业: 压滤机分为板框式压滤机和厢式压滤机,它是一种间歇性的加压过滤设备,用于各种悬浮液的固液分离。它是依靠压紧装置将滤板压紧,再将悬浮液用进料泵压入滤室,通过滤布来达到将固体颗粒和液体物料分离的目的。整机结构简单,分离效果好,使用方便,使用范围广,广泛用于矿山、冶金、石油、化工、医药、纺织、印染、造纸、食品、酒精、无机盐、洗煤以及污水处理等领域。 Filter presses can be divided into plate and frame type and chamber type. It is one kind of intermittent filter equipment. It is used for solid-liquid separation of various suspending liquid. Filter plates are pressed by pressing devices, and then suspension is pumped into the filter chamber. Solid particles and liquid is separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.

产品介绍:压滤机在过滤过程中,由于滤布的毛细渗漏现象,滤板之间会有滴漏,这样既对环境造成污染,又增加了了压滤机下面的储泥斗中的泥料含水率,给操作带来很大麻烦。我公司设计的自动集液翻板系统可以收集滤板滴漏的液体,避免压滤机工作现场的污染,也避免了储泥斗中的已脱水物料被侵润。 Filter press in the filtration process, due to capillary leakage of cloth, there may be a drip between the filter plates, so not only environmental pollution, but also increase the moisture content of the mud in the storage bucket, great trouble to the operator. The automatic bomb door we design can collect leakage, then avoid pollution contamination of filter press work site, but also to avoid the filter cake wet.

全国24小时销售热线:028-66445555

产品介绍

技术参数



1250/1500/2000型自动拉板压滤机技术参数

型号

Type

过滤面积

Filter area

(m2)

滤板尺寸Filter plate size (mm)



滤饼厚度

Filter cake thickness

(mm)

滤室容积Filter chamber volume

(L)



滤板数量Filter plate number

(PCS)



过滤压力Filtrating pressure

(MPa)



电机功率

Motor power

(KW)

整机重量Weight

(Kg)

外形尺寸

Dimension (mm)

(L×W×H)

XZ100/1250-30U

100

1250×1250

30

1479

36

0.6

4.0

8307

5020×1800×1600

XZ120/1250-30U

120

1777

43

9308

5470×1800×1600

XZ140/1250-30U

140

2094

51

10455

5990×1800×1600

XZ160/1250-30U

160

2381

58

11492

6450×1800×1600

XZ180/1250-30U

180

2669

65

12494

6905×1800×1600

XZ200/1250-30U

200

2965

72

13504

7360×1800×1600

XZ220/1250-30U

220

3285

80

14652

7880×1800×1600

XZ250/1250-30U

250

3737

91

16227

8600×1800×1600
